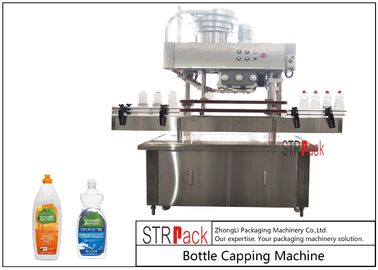

Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame

Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame

    • Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame
    • Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame
    • Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame
    • Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame
  • Wash Liquid Inline Bottle Capping Machine 200 CPM With Heavy Duty Frame

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Max Output: 150bottles/min Suitable Size Range: 15~300ml
    Dia Of Cap: 15~65mm Dia Of Bottle Body: 20~100mm
    Bottle Height: 45~220mm Power Consumption: 1.50Kw

    In-line Automatic Wash Liquid Bottle Capping Machine Dishwashing Inline Bottle Capping Machines Up To 200 CPM





    CAPPING MACHINE SELECTION GUIDE

    Capping machines are used for the application of plastic and metal threaded caps as well as plastic snap caps, some fitments and some types of corks and plugs. Capping is usually the most difficult aspect of a liquid packaging line for several reasons. Sometimes the range of geometries and sizes of caps and bottles is so wide that the capping machine components become expensive or the platform of that particular type of capping machine is not suitable for all sizes and geometries in the range. Sometimes the bottle and cap combination are not ideal with the threads of the bottle being in conflict with the threads of the cap and great force is needed to apply the cap. Sometimes caps can only be placed vertically on the container which increases the capital cost of the machinery. Inline Filling Systems understands these issues very well and has a capping machine to address every one of these capping challenges. We specialize in capping machines and cap feeding systems for both startup companies as well as higher speed production environments.



    Fully automatic inline capping machine applies and torques caps onto containers as they are gripped by belts and passed through on a moving conveyor.

      • Capping speed: up to 200 cpm depending on cap size and container configuration.
      • Cap size range: up to 120 mm including child resistant caps.
      • Container size range: (height) 1-1/2″ to 15″ (width) 1/2″ to 7″ in plastic, metal, or glass.
      • Stainless Steel frame & panels for cleanliness and durability.
      • Mounts over existing conveyor system and includes casters and leveling pads.
      • Control panel visually displays operating parameters and messages in 40 characters for concise operator feedback.
      • Power bottle height adjustment.
      • Pneumatic cap torque control for accuracy and reduction of scuffed caps.
      • On Demand Operation: Capper only operates when containers enter the capping zone.
      • Cap Chute Full sensor: Sorters suspend operation when cap chute is full.

    Technical Parameters:



    No. Item Details
    1 Max output 150bottles/min
    2 Suitable size range 15~300ml
    3 Dia of Cap 15~65mm
    4 Dia of bottle body 20~100mm
    5 Bottle height 45~220mm
    6 Voltage/Frequency AC220V/50Hz
    7 Power consumption 1.50Kw
    8 Dimensions(LxWxH) 2600x1060x1950mm
    9 Weight 613Kg



    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.

    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !




    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
