120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps

120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps

  • 120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps
  • 120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps
  • 120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps
  • 120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps
120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Capping Heads: 6 Capacity: ≤5000 Bottles/hour
Container Diameter: Φ50mm-Φ100mm Container Height: 80mm~280mm
Cap Diameter: Φ17mm~Φ35mm Inner Plug Diameter: Φ12mm~Φ35mm
High Light:

rotary capping machine

,

linear capping machine

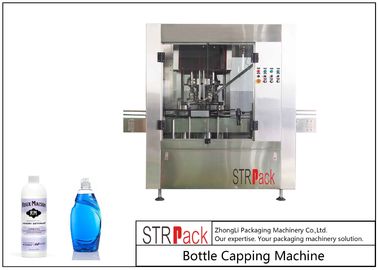

SX-6 Automatic Rotary Bottle Capping Machine Speeds Up To 120 CPM For Water Bottle Caps, Condiment Container Caps


The SX-6 Series Cappers are versatile rotary capping systems design to complement high speed rotary bottling equipment. These flexible rotary cappers continuously sort, apply, and torque caps to a variety of different container sizes and shapes. They comes standard with mechanical friction clutches to ensure that accurate and uniform torque values are applied to each container for optimal closure results. They can be easily integrated into existing packaging lines or tailored for your new project specs.
The SX Series Cappers are available in two model sizes, the SX-8 and the SX-6, with operational speeds up to 120 CPM and 180 CPM respectively. (Higher speeds possible depending on container and cap characteristics.) Each SX Series Capper can accommodate a range of container and cap sizes with minimal change parts. This makes them the perfect capper for customers or contract packagers who plan to run multiple products on a single bottling line. All cappers have color touch screen displays featuring a full management interface for complete efficiency control. Up to 99 job recipes can be saved making changeover from one project to another smooth and simple.


Features

    • Adaptable to a wide range of caps and containers
    • Speeds up to 120 CPM1
    • Up to 20 AC motor drive chuck capping stations
    • Automatic “No Bottle - No Cap” system
    • Centrifugal cap orientation and delivery
    • Powered height control
    • Single point grease system for easy maintenance
    • Touch screen controls with job memory
    • Adjustable mechanical friction clutches
    • Quick swap change parts,



Options
  • Neck stabilizer for weak walled containers
  • Low cap supply sensor and alarms
  • Anti-rotation upgrade for round containers (Cam or Belt operated)
  • QA sensor and alarm for miss-aligned or missing caps
  • Custom chuck head upgrades (Vacuum, teeth)
  • Magnetic or Pneumatic clutches
Recommended products for this machine



Water bottle caps, condiment container caps, sport caps



Technical parameter:

No.ItemsPerformance
01Number of capping heads6
02Production capacity≤5000 bottles/hour
03container diameterΦ50mm-Φ100mm
04container height80mm~280mm
05cap diameterΦ17mm~Φ35mm
06Inner plug diameterΦ12mm~Φ35mm
07Power supplyAC220V ; 50Hz
08Power3.5 Kw
09Machine dimension(L×W×H)2000mm×1100mm×2200mm
10Machine weight800Kg
11Vacuum source6.67×10-2 Pa ,air exhausted 15 L/S


120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps 0

120 CPM Speed Automatic Bottle Capping Equipment For Water Bottle / Condiment Container Caps 1


FAQ
1---If have stock machine?
For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
2---How long time to make?
For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
3---Ship from which port?
If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.

-If can visit factory to check machines firstly, then place order?
Sure! Welcome to visit us !




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
