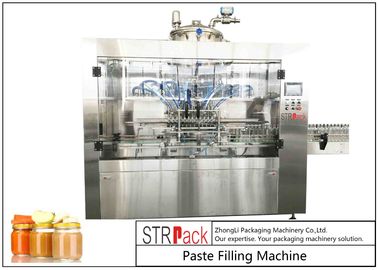

Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump

Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump

    • Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump
    • Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump
    • Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump
    • Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump
  • Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Applicable Bottle Size: ф40-100mm The Measurement Precision: ±1%
    Filling Capacity: 100ml-1000ml Production Capacity: 2500-1500
    Air Pressure: 0.6-0.8MPA Total Rate: 4.5kw

    PLC 8 Head Nozzle Automatic Linear Servo Driven Pump Filling Machine For Baby Food Piston Paste Filling Machine





    Baby Food Piston Paste Filling Machine Application

    This is a 12 heads linear piston filling machine, especially designed for viscous daily chemical products such detergent shampoo, body lotion, shower gel and so on. Controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operation, and low noise, widely adjusting range and fast filling speed.
    1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of 12 filling heads can be changed substantially, but also each filling head volume can be changed finely.
    2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.
    3. Various sealing rings used can meet different characteristics of products requirements.
    4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.
    5. The material which contacts liquid will be made of SS304.
    6. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.







    Application:
    This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particlates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.



    Examples:
    Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.



    Advantages:
    This lower cost conventional technology is easy to understand for most users. Fast fill rates are achievable with fairly thick products. Warning: this technology is nearly obsolete with the advent of servo positive displacement fillers.



    Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump



    Machine Parts

    1. Filling nozzle:
    (1) Specification adjustment can be achieved without tool;
    (2) The filling pipes are all adopt fast loading clamp, easy to dismantle and maintain.
    (3) No dripping.


    Main Features

    (1) The position of adjustment are all carved scale or equipped with digital display, easy to adjust;



    Machine Parts

    Part of filling hopper:
    (1) The connector is all adopt fast loading clamp type, easily dismantle, clean and maintain.
    (2) All pipe joints are installed a drip tight gasket, for avoiding liquid drip, ensured a long-term service life and won’t penetrate.
    (3) Designing and production meet GMP. Easily dismantle, clean and maintain.



    Main Features

    Piston fall off piston cylinder
    For the difficulty of cleaning piston cylinder and changing sealing ring, our company designed a new filling machine which adopt fully automatic cleaning system, before clean or replace material, through man-machine interface operation, the piston can automatically fall off and return the piston cylinder, then the rest material will flow into recycling platform by gravity, save the time of manual cleaning.





    Configuration of Baby Food Piston Paste Filling Machine

    NO. ITEM SUPPLIER Brand
    1 Touch screen Taiwan WEINVEIW
    2 PLC Japan Mitsubishi
    3 Photo sensor for bottles Japan OPTEX
    4 solenoid valve Taiwan SHAKO
    5 Level button USA JOHNSON CONTROLS
    6 angle seat Valve Jointed BURKERT
    7 Other divices Taiwan Airtac
    8 Power button France Schneider
    9 Button France Schneider
    10 frequency converter France Schneider
    11 bottle- transport motor China Huangyan
    12 Speed reducer China Jiao xing
    13 Relay Japan Omron





    Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump



    Automatic Linear Baby Food Paste Filling Machine With Servo Driven Pump



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
