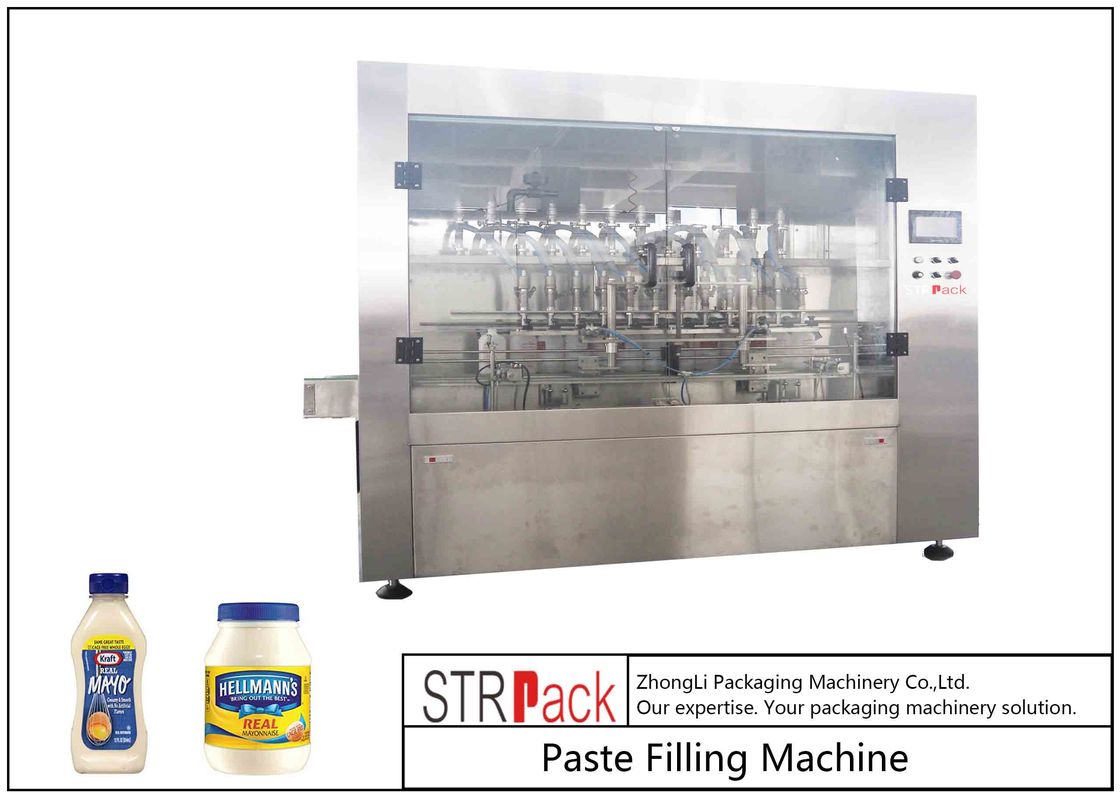

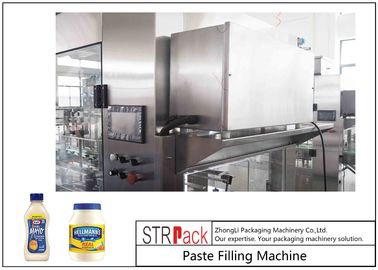

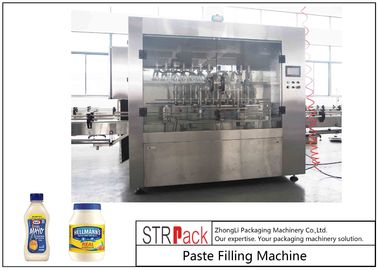

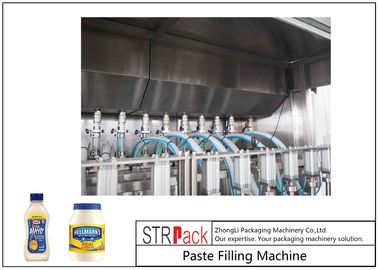

Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler

Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler

    • Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler
    • Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler
    • Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler
    • Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler
  • Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Model: SFC Series Filling Heads: 12
    Filling Range: 50-5000ml(customized) Filling Speed: 1000-6000bph
    Filling Accuracy: ≤±1.0% Power: ≤2kw

    Automatic 12 Nozzles Mayonnaise And Ketchup Bottle Filling Machine WIith Linear High Viscosity Piston Filler







    Mayonnaise Filling Machine can be used as single machine, also can be used in packinging line. We could design and customize the filling, capping, labelling production line according to customers' requirement.





    Application:
    This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particlates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.

    Examples:
    Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.

    Advantages:
    This lower cost conventional technology is easy to understand for most users. Fast fill rates are achievable with fairly thick products. Warning: this technology is nearly obsolete with the advent of servo positive displacement fillers.





    Introduction of the filling machine:

    Combining many years production experience with foreign advanced technologies, our company developed this series of all-Automatic thick-sauce filling machine. Its electrical and pneumatic components are world-famous products, and it is controled by PLC. Using piston-type metering principles, combining electrical with pneumatic function together, it performs many advantages,such as, reasonable design, compact structure, beautiful shape, stable and reliable performance, accurate filling, good adaptablity, being easy to use and convienent to maintain and so on.



    It is widely used in a variety of semi-fluid materials, paste, viscous materials ,sauces, and the granule-containing materials filling. Such as those containing fruit drinks, honey, syrup, jam, peanut butter, sesame, tomato sauce, chili sauce and a variety of cream are applicable to it.



    This series of filling machines contain a variety of models with double-heads, 4-heads, 6-heads, 8-heads and even 20-heads, which are classified into many types by filling range. In order to meet different customers's needs,,luxurious model, the model of drums with mixing system and the model of high temperature filling at 70-95 temperature could be designed according to the actual situation.







    Features of this series of filling machine:

    1.The world-famous electrical and pneumatic components are adopted, so the machine will be stable and reliable and could be used with a low failure rate and long service life

    2.The part of machine which touches food are mainly made by the high-quality stainless steel, which makes dismantling, assembling and cleaning more convenient. What’s more, it is in full compliance with food hygiene requirements;

    3.Adjustment of filling volume and filling speed is simple. There is no filling when the bottle doesn’t exist. Liquid level controls filling automatically. It has a nice appearance.

    4.It is adaptable. Without changing elements, bottles of different shapes and sizes can be adjusted and replaced quickly.

    5.Filling mouth with anti-drip device ensure that there is no drawing, no dripduring filling.







    Parameters of Mayonnaise Filling Machine



    Model SFC Series
    Filling Heads 2,4,6,8,10,12,14,16...
    Filling Range 50-5000ml(customized)
    Filling Speed 1000-6000bph
    Filling Accuracy ≤±1.0%
    Power Supply 380V 50/60Hz
    Power 2kw
    Air Pressure 0.4-0.75MPa
    Dimension 2000*1100*1500mm





    Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler



    Customized Mayonnaise / Ketchup Filling Machine , High Viscosity Piston Filler

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
