| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Power Supply: | AC 220V ;50Hz Or 380V; 50Hz | Power: | 2.2kw |
|---|---|---|---|
| Number Of Filling Nozzles: | 12 | Productivity: | ≤100b/min (for 1.5L) |
| Material Density:: | 0.6-1.3 | Machine Weight: | 650kg |
| High Light: | gravity filling machine,piston filling machine |
||

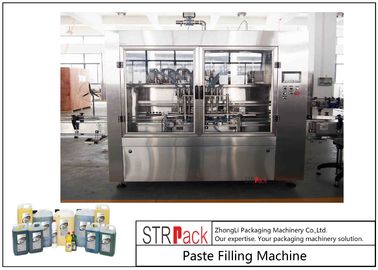

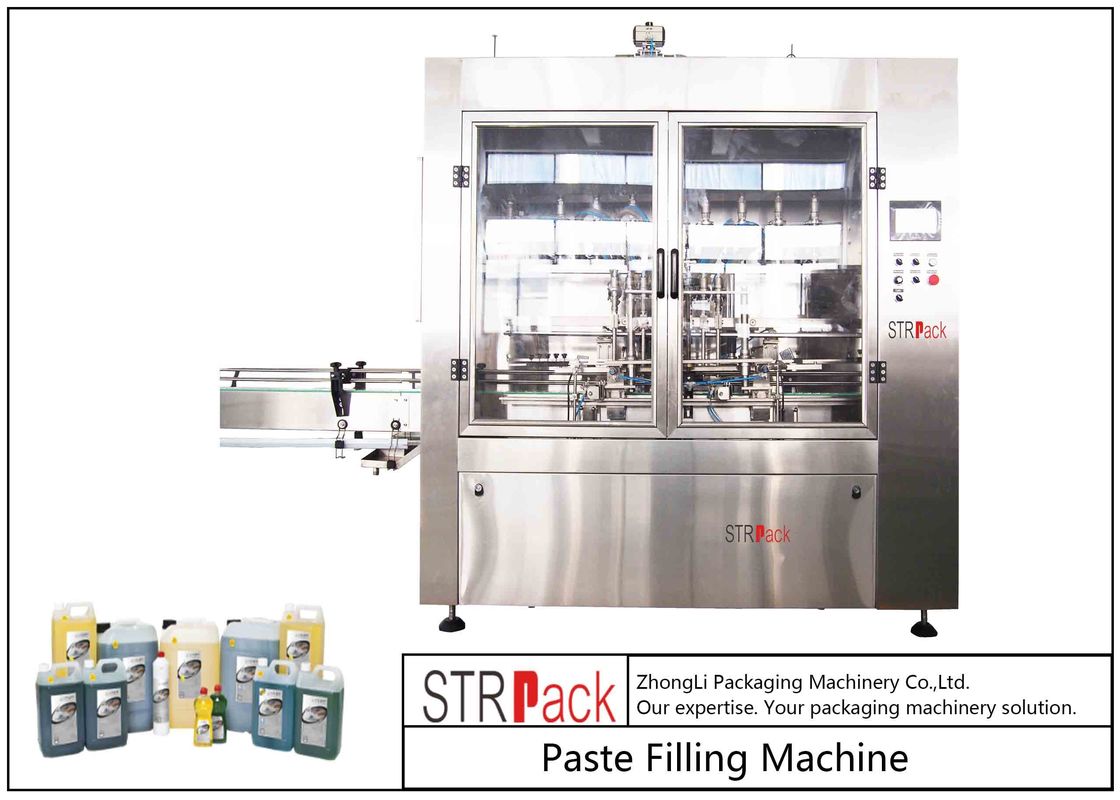

Inline Chemicals Piston Filling Machine 8 Heads 1L Bottle Filling Machine For Cosmetic,Medicine,Cream,Paste,Pesticide
When you are bottling Chemical there are several types of filling machines you may choose.
Our Chemical liquid filling machines are designed to meet the changing needs of the Chemical industry. We manufacture the ideal machinery to handle your Chemical filling needs and meet your production goals.
There are many different technologies and capacities of filling machines available on the world market. It is possible to fill many products on more than one type of filling machine. Choosing the best liquid filling machine for your application is a complex decision based on a host of factors including product characteristics, container characteristics, fill size, daily production needs, plant environment, regulatory issues and hardware cost versus performance.
Machine capacities range from the humble manual filler operating at 10 containers per minute (CPM) to high speed rotary systems operating at 1000+ CPM. Inline Filling Systems specializes in machines for companies producing up to 200 CPM as well as startup companies producing less than 1000 containers per day.
There are expensive liquid filling machine technologies beyond the reach of most small to medium sized bottling operations. There are also some very cheap machines, including Chinese and other foreign imports, that cost owners more to maintain and often result in production downtime or quality issues. After designing and building many different types of filler machines over a 20 year period and operating our fillers in our own contract packaging environment, we have the wisdom and experience to offer you only those technologies which provide the best versatility, flexibility and reliability for the best cost.
Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particlates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
Examples:
Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.
Advantages:
This lower cost conventional technology is easy to understand for most users. Fast fill rates are achievable with fairly thick products. Warning: this technology is nearly obsolete with the advent of servo positive displacement fillers.
Major Characteristics:
1. Rotary piston filling, high efficiency with high production capacity.

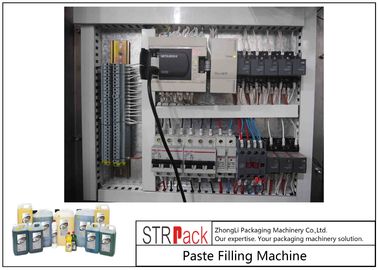

2. PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
3. Two channel standard safety electric circuit to make sure equipments running safely.
4. With AUTO-ID system. No bottle no filling.
5. Servo drive piston, high-precision filling
6. Adopting diving filling to avoid foamy and explosion.
7. Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.
Technical parameter:
| NO. | Items | Performance |
| 01 | Power Supply | AC 220V ;50Hz or 380V; 50Hz |
| 02 | Power | 2.2kw |
| 03 | Suitable containers | Container mouth diameter: ≥Φ18mm (can be customized) |
| Container height:100mm-300mm (can be customized) | ||
| Container diameter:30mm-100mm (can be customized) | ||
| 04 | Number of filling nozzles | 12(may customized) |
| 05 | Productivity | ≤100b/min (for 1.5L) |
| 06 | Pneumatic (air -operated) source | 0.33-0.50 Mpa clean and Stable compressed air |
| 07 | Material density: | 0.6-1.3 |
| 08 | Machine weight | 650Kg |
| 09 | Dimension(L*W*H) | 2400mm*2300mm*2700mm |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
